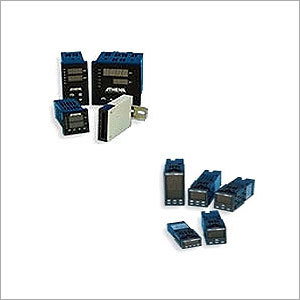

Electric Digital Display Temperature Controller

Name: Electric Digital Display Temperature Controller
Brand: ADINATH CONTROLS PVT. LTD.
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Electric Digital Display Temperature Controller Specification

Type
Digital Temperature Controller

Theory
PID Auto Tuning Control

Exterior Material
ABS Plastic or Metal Housing

Interior Material
Fire Retardant Polycarbonate

Insulation Material
Polyurethane Foam

Circulation System
Air Circulation Fan (Optional)

Heating System
Electric Heater Integrated

Humidifying System
Optional - Vapor Generator Module

Cooling System
Air or Liquid Cooled (Optional)

Dehumidifying System
Optional - Condenser Module

Controller System
Microprocessor Based Control

Humidity Range
20%RH to 98%RH (with humidity sensor)

Temperature Range
-50C to +300C Celsius (oC)

Working Environment
0C to 50C, 85%RH

Display Type
LCD/LED Digital Display

Power Supply
100-240V AC, 50/60Hz Universal

Input Sensor
Thermocouple (K, J, T) or RTD (Pt100)

Control Output
Relay/SSR/4-20mA Output

Protection Degree
IP54 (Front Panel)

Accuracy
0.3% of Full Scale

Mounting Type
Panel Mount with Snap Clips

Weight
Approx. 350g

Setpoint Memory
Non-volatile EEPROM

Alarm Type
Buzzer and Display Alarm with Relay Output

About Electric Digital Display Temperature Controller

Product Details

Frequency	50/60 Hz
Usage/Application	TEMPERATURE CONTROLLER
Throw Type	Single Throw
Temperature Range	As Per Application
Model No.	25C,18C
Model Name/Number	25C,18C
Voltage	230 VAc
Warranty	1 Year
Brand	Adinath Controls
Power	100 to 240 VAC
Size	96*96 mm
Controller Type	PID/ON-OFF
Display Size	As Per Application
Type	Digital
Accuracy	Accurate
Control Type	PID/On-Off
Input Type	Voltage (mV),Thermocouple,Current (mA),RTD
Control output Type	SSR,Relay/SSR,Relay,Analog (mA/mV)
Mounting Type	Panel
Resolution	USA
Display Type	4 Digit/7 Segment

Versatile Sensor Compatibility

The controller accommodates thermocouple (K, J, T) and RTD (Pt100) sensors, broadening its applications across industrial and laboratory environments. Its auto-tuning PID algorithm guarantees optimal performance and temperature stability for a wide range of thermal management tasks.

Intelligent Control & Display

With its user-friendly LCD or LED digital display, the controller enables real-time monitoring and precise setting adjustments. Alarm indications and relay outputs provide quick response to abnormal conditions, and all settings are safely stored in EEPROM memory even during power loss.

Flexible Installation & Protection

Designed for panel mount configurations, the controller offers secure installation with snap clips and complies with IP54 protection standards for its front panel. The compact DIN size allows for easy integration into existing control panels, best suited for temperature and humidity management applications.

FAQs of Temperature Controllers:

Q: How can I use the temperature controller with different types of input sensors?

A: This controller is compatible with both thermocouple (K, J, T) and RTD (Pt100) sensors. Simply connect the appropriate sensor type to the input terminal and select the sensor type via the device settings. Refer to the user manual for detailed wiring instructions.

Q: What is the benefit of the PID auto-tuning control theory in this controller?

A: PID auto-tuning adjusts control parameters automatically for each application, which optimizes response time and stability without manual calibration. This ensures consistent, accurate temperature control across diverse processes, reducing setup time and maintenance.

Q: When should I use the alarm output features, and how are they indicated?

A: Alarms are triggered when the temperature exceeds set thresholds, or if faults are detected. Indications appear through the display and an audible buzzer, while a relay output allows integration with external safety or alert systems, ensuring timely intervention during critical events.

Q: Where is this temperature controller best installed, and what is required for mounting?

A: The controller is specifically designed for panel mounting using snap clips and fits standard DIN cutouts. Ensure installation is in environments with temperatures between 0C and 50C, and humidity below 85%RH, ideally in control panels requiring reliable front-panel protection (IP54).

Q: What is the process for configuring output types such as relay, SSR, or 4-20mA?

A: Output types can be configured during setup. Connect your chosen output (relay, SSR, or 4-20mA) to the designated terminals, then select the matching control output via the device menu for proper control of external systems like heaters or cooling equipment.

Q: Can the internal and external sizes be customized for specific requirements?

A: Yes, the internal size can be customized as per your requirement. The external dimensions adhere to standard DIN sizes for panel mounting. Please contact the supplier or manufacturer with your specifications for tailored solutions.

Q: What are the key usage benefits of the digital display and non-volatile setpoint memory?

A: The digital LCD/LED display makes it easy to monitor and adjust settings. Non-volatile EEPROM memory preserves setpoints and configurations even after power loss, ensuring quick recovery and uninterrupted process control.
